Palma - Performance meets Sustainability
The Palma, Palma Tec, and Palma Carbon ranges offer exceptional durability, low stretch, and UV resistance while integrating cutting-edge sustainable materials.
Whether you're racing or pushing your boat to its limits, this product line provides an optimal balance of shape retention, longevity, and environmental responsibility.
Laminates for 2025
Sustainability at the Core
Challenge Sailcloth is redefining sustainability in sailmaking by incorporating environmentally responsible materials and processes. Here’s how the Palma series sets a new standard:
Recycled Fiber & Film
The Palma Series uses 100% recycled polyester fiber (rPET) and recycled film, reducing environmental impact without compromising performance. Challenge RUV™ film lasts 5x longer than traditional sail films, increasing UV resistance and longevity.
Non-Toxic Adhesive Technology
Uses a solvent-free, PFAS-free bonding process, eliminating harmful chemicals often used in traditional laminates. Industry-leading adhesion and weathering performance without the need for carbon offsets.
Energy-Efficient Manufacturing
Challenge’s eco-friendly production facilities are powered by hydroelectric energy, minimizing carbon footprint. Eliminates high-energy drying ovens and curing processes required by conventional laminates, reducing overall emissions.
Performance & Durability
Ultra PE (UPE) provides low stretch for superior shape retention, while its toughness ensures long-term durability.
Superior UV & Water Resistance
Unlike aramid or carbon, UPE is hydrophobic, meaning it won’t absorb water, and offers exceptional UV resistance.
Sustainability
Palma laminates use 100% recycled polyester fiber and recycled film, with a solvent-free adhesive that eliminates harmful chemicals.
Soft & Strong
The combination of polyester taffetas and high-tenacity fibers results in a fabric that is soft to handle but incredibly strong.
Palma
Sailors demand more from their sails—better shape retention, higher durability, and sustainability without compromise. The Palma Series by Challenge Sailcloth delivers exactly that.
These advanced Ultra PE-enhanced laminates offer exceptional shape holding, UV resistance, and toughness, making them the ideal choice for sailors who want to sail fast and go the distance.
Palma sails are built with a combination of Ultra PE (UHMWPE) fibers and recycled polyester (rPET), providing excellent shape retention, tear resistance, and longevity. These laminates feature taffeta on both sides for additional durability and UV protection.

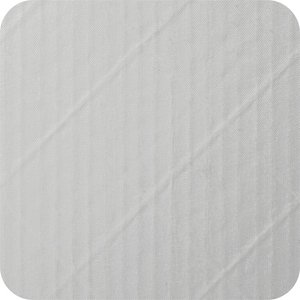

Palma 6

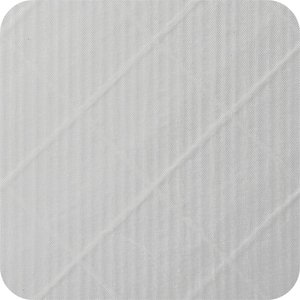

Palma 9

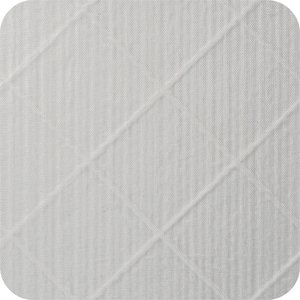

Palma 13
Palma 16
Reinforced Black Polyester Fibers
Handles off-angle loads, making it virtually untearable.
Tighter X Scrim & High-Lamination Strength
Exceptional shape retention for extended sail life.
Soft & Flexible
The combination of polyester taffetas and high-tenacity fibers results in a fabric that is soft to handle but incredibly strong.
Palma-Tec
For sailors demanding even more from their sailcloth, Palma-Tec offers all inlaid fiber construction for maximum performance.
Palma Tec laminates use large black high-tenacity polyester fibers strategically placed to handle off-angle loads and prevent tearing. Sandwiched between white taffetas, they deliver superior durability with a light grey appearance.

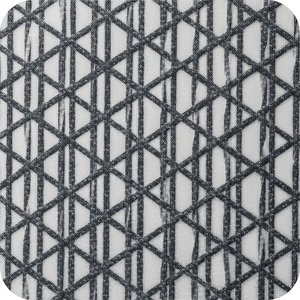

Palma Tec 6

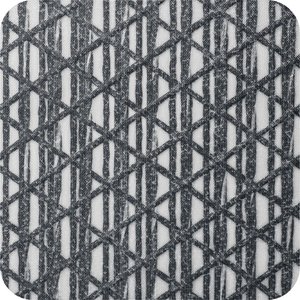

Palma Tec 9

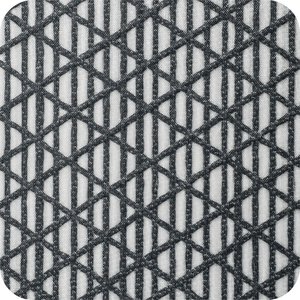

Palma Tec 13
Palma Tec 16
Blended UPE and Carbon Fibre Warp Yarns
Palma laminate utilizing Carbon fiber blended with UPE (UHMWPE) fiber for larger modern performance-oriented cruising boats.
Lowest Stretch Cruising Fabric
For boats in the 60-75' range that don't want or need membrane sails. Exceptional shape retention for extended sail life.
Recycled film and polyester taffeta
And no solvents or PFAS chemicals, as per the palma range.
Palma-Carbon
Palma Carbon takes performance to the next level by incorporating carbon fiber into its structural elements. This results in an ultra-low stretch sail laminate with exceptional strength-to-weight ratio and load distribution.
Specifically designed for modern cruising boats and sailors who are interested in performance and good sail shape while enjoying their leisure time on the water. Cruisers like to go fast as well!

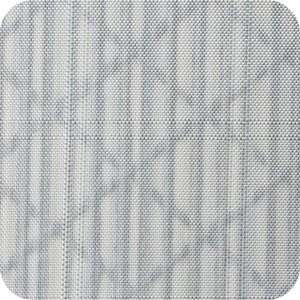

Palma Carbon 20

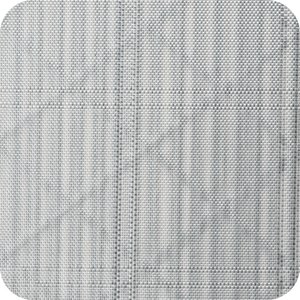

Palma Carbon 27
| Boat Length ft | Boat Length M | Mainsail | Furling Genoa | Headsail #1 | Headsail #2 | Headsail #3 |
|---|---|---|---|---|---|---|
| 20-25 | 6-7.5 | Palma 6 | Palma 6 | Palma 6 | Palma 6 | Palma 6 |
| 25-30 | 7.5-9 | Palma 9 | Palma 9 | Palma 6 | Palma 6 | Palma 6 |
| 30-35 | 9-10.5 | Palma 13 | Palma 13 | Palma 9 | Palma 9 | Palma 9 |
| 35-40 | 10.5-12 | Palma 18 | Palma 18 | Palma 13 | Palma 13 | Palma 13 |
| 40-45 | 12-13.7 | Palma 24 | Palma 24 | Palma 18 | Palma 18 | Palma 18 |
| 45-50 | 13.7-15.3 | Palma 24 | Palma 24 | Palma 18 | Palma 18 | Palma 18 |
| Boat Length ft | Boat Length M | Mainsail | Furling Genoa | Headsail #1 | Headsail #2 | Headsail #3 |
|---|---|---|---|---|---|---|
| 20-25 | 6-7.5 | Palma-Tec 6 | Palma-Tec 6 | Palma-Tec 6 | Palma-Tec 6 | Palma-Tec 6 |
| 25-30 | 7.5-9 | Palma-Tec 9 | Palma-Tec 9 | Palma-Tec 6 | Palma-Tec 6 | Palma-Tec 6 |
| 30-35 | 9-10.5 | Palma-Tec 13 | Palma-Tec 13 | Palma-Tec 9 | Palma-Tec 9 | Palma-Tec 9 |
| 35-40 | 10.5-12 | Palma-Tec 18 | Palma-Tec 18 | Palma-Tec 13 | Palma-Tec 13 | Palma-Tec 13 |
| 40-45 | 12-13.7 | Palma-Tec 24 | Palma-Tec 24 | Palma-Tec 18 | Palma-Tec 18 | Palma-Tec 18 |
| 45-50 | 13.7-15.3 | Palma-Tec 28 | Palma-Tec 28 | Palma-Tec 24 | Palma-Tec 24 | Palma-Tec 24 |
| 50-55 | 15.3-16.8 | Palma-Tec 32 | Palma-Tec 32 | Palma-Tec 28 | Palma-Tec 28 | Palma-Tec 28 |
| Boat Length ft | Boat Length M | Mainsail | Furling Genoa | Headsail #1 | Headsail #2 | Headsail #3 |
|---|---|---|---|---|---|---|
| 20-25 | 6-7.5 | Palma Carbon 6 | Palma Carbon 6 | Palma Carbon 6 | Palma Carbon 6 | Palma Carbon 6 |
| 25-30 | 7.5-9 | Palma Carbon 9 | Palma Carbon 9 | Palma Carbon 6 | Palma Carbon 6 | Palma Carbon 6 |
| 30-35 | 9-10.5 | Palma Carbon 13 | Palma Carbon 13 | Palma Carbon 9 | Palma Carbon 9 | Palma Carbon 9 |
| 35-40 | 10.5-12 | Palma Carbon 18 | Palma Carbon 18 | Palma Carbon 13 | Palma Carbon 13 | Palma Carbon 13 |
| 40-45 | 12-13.7 | Palma Carbon 24 | Palma Carbon 24 | Palma Carbon 18 | Palma Carbon 18 | Palma Carbon 18 |
| 45-50 | 13.7-15.3 | Palma Carbon 24 | Palma Carbon 24 | Palma Carbon 18 | Palma Carbon 18 | Palma Carbon 18 |
Plan Your Sail Wardrobe
Kraken Sails’ Palma Series Wardrobe Planner allows you to explore sail options tailored to your boat’s performance needs. Input your sail dimensions and performance requirements, and you’ll receive estimated specifications and pricing guidance to help you make informed decisions.
